　Name ： ET-6078C Transmission Filling system
Product Introduction：

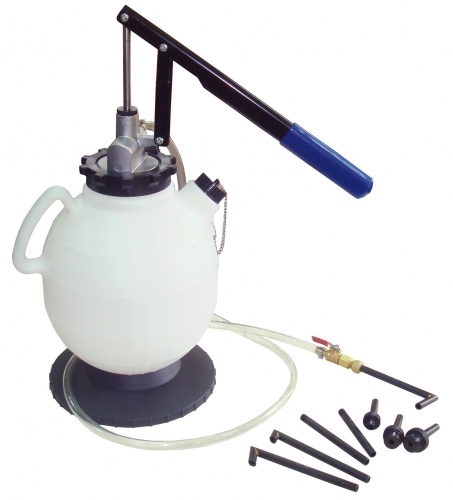

ET-6078C Transmission Filling system
Product Detail：












ET-6078C  Transmission Filling system

  • Capacity: 7.5L

  • Outlet: 80cc/ cycle

  • Viscosity Range: up to SAE 140


 Attachment Specification:


















































Parts No. picture application
ATF-101   1/8 NPT, Ford
ATF-102   Universal

BMW, Honda, Nisan, etc
ATF-103   VW/Audi
ATF-104   VW/Audi, Porsche
ATF-105   M10 x 1.0, VW/Audi, Mini cooper
ATF-106   M24 x 1.5, VW/Audi DSG
ATF-107   M22 x 1.5, VW/Audi CVT
ATF-108   M12 x 1.5, Mercedes

Operation:

















  Step 1:

  • Select the correct attachment.





  • Open the valve and push the oil way control bolt to right side, and then push the handle to transmit oil.


   Step 2:

When handle is hard to push and ATF of vehicle is almost full.

  • Push the oil way control bolt to left side and make smoothly transmission oil.
  Step 3:

When transmission oil almost finished.

  • Close the valve


   Step 4:

When finished transmission oil, stop to push the handle.

  • Take out the attachment from ATF and put the hose higher than tank. And then open the valve, let residue oil in the house reflux into the tank.



Note: 1. Do not used with volatility product (e.g. petro, diesel oil …etc).

2. Keep away from fire.

3. Please prevent polluting the ATF oil and keep work environment clean.
